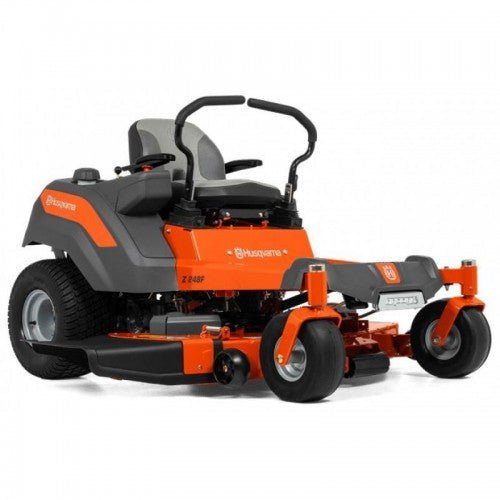

Performance and style hit the grass running with the all new Z200 Series Zero
Turn Mowers. Cutting edge design, proven performance and new innovative features
combine to make lawn maintenance an event instead of a chore.
Key Features
Comfortable Seat: The thick padded seat and soft outer cover offers superior
support and comfort, while the open back gives added ventilation.
Automatic park brake system: The new patent pending park brake system
automatically activates or deactivates as the steering levers are moved
outward or inward, freeing the user of the task.
Removable foot plate: The unique tube style chassis features a removable foot
pan for easy access to the top of the cutting deck.
Bumper: The integrated front guard/ bumper offers bold styling while
protecting the nose of the unit. An optional bright LED headlight kit can
easily be added, providing improved visability in dark conditions.
Limited warranty
Homeowner Warranty: 3 Years
Commercial Warranty: No Warranty
Capacity
Speed forward max: 6.5 mph
Speed forward min: 0 mph
Cutting deck
Cutting width: 48 in
Cutting deck type: ClearCut – Fabricated
Cutting methods: Collect/Mulch/Side discharge
Cutting deck material: Steel
Deck thickness: 10 gauge
Cutting height steps: 6
Blade engagement: Electric clutch
Clutch rating: 87 ft.lb
Blades: 3 pcs
Blade-tip speed: 18500 fpm
Anti-scalp wheels: 3
Nose roller: Yes
Deck lifting system: Manual, hand operated
Powder-coated cutting deck: Yes
Spindle/mandrel type: Cast iron
Greasable mandrels: Yes
Deck Wash Port: Yes
Cutting height, min (approximate): 1.5 in
Cutting height, max (approximate): 4 in
Dimensions
Base machine, length: 75 in
Base machine, height: 40 in
Base machine, width (chute down): 60 in
Base machine, width (chute up): 50 in
Weight: 587 lbs
Tire size, front Diameter wheel: 5 in
Drive system
Transmission type: Hydrostatic
Transmission manufacturer: Hydro-Gear
Transmission model: ZT-2200
Engine
Motor/engine manufacturer: Kawasaki
Engine name: FR Series
Power output: 21.5 hp
Cylinder displacement: 44.3 cu.inch
Cylinders: 2
Engine cooling: Air
Air filter type: Auto-type Paper
Power/fuel type: Gasoline
Engine lubrication type: Full pressure with oil filter
Oil filter: Yes
Fuel tank volume (with reserve): 3.5 gal (US)
Fuel tank location: Side (Single)
Equipment
Seat material: Vinyl
Seat spring: Yes
Seat back height: High
Hour meter type: Digital with pre-programmed service intervals
Cup holder: Yes
Armrests: No
ROPS: No
Seat type: 15″ high back
